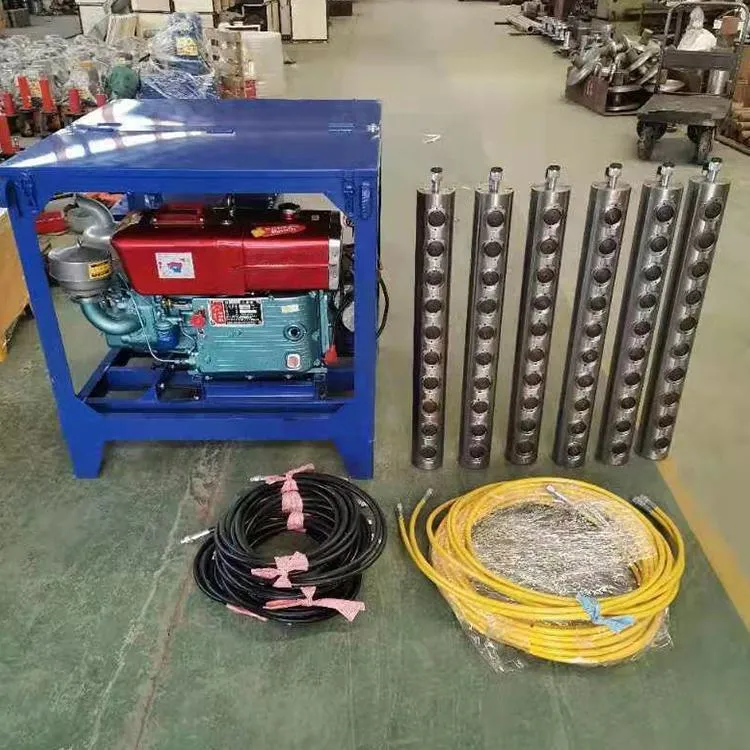

Piston Bar Hydraulic Splitter, The high pressure hydraulic oil used in the Piston Bar Hydraulic Splitter provides enormous pushing power to the piston bars, which directly affects the rock face inside the perforations. The rocks will be fractured or separated from the stone block or mountain in two to three minutes using up to 1200 tons of pressing force.

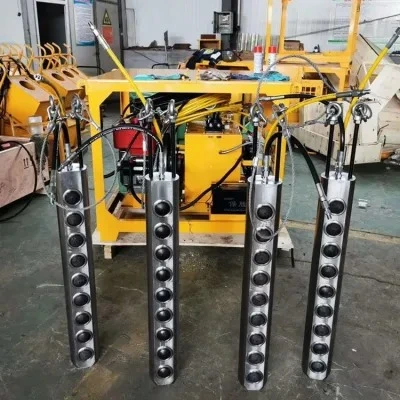

1. Hydraulic Power Station
| Type | Electric | Diesel |
| Overal Size | 1050x750x650MM | 1150x900x800MM |
| Weight | 120kg | 158kg |
| Oil Tank | 35L | 40L |
| Power | 2.2KW | 7.5P |
| Working Pressure | 90-120Mpa | 90-120Mpa |
| quantity of piston bars | 1-6 pcs | 1-6 pcs |
| hydraulic oil | #46 or #68 anti-wear hydraulic oil | |

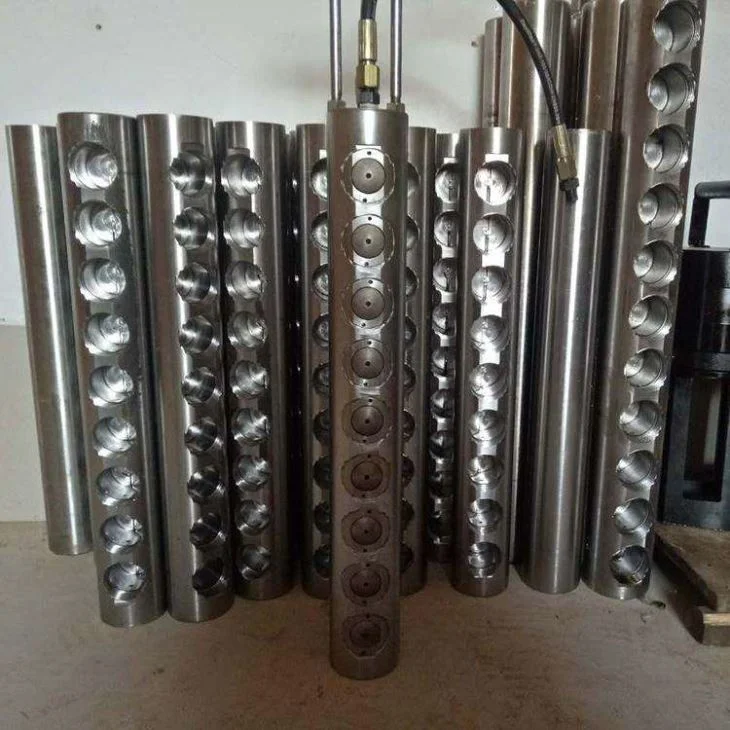

2. Piston Bar
| Model | SPD83 | SPD90 | SPD110 |
| Length | 750MM | 850MM | 1000MM |
| Diameter | 83MM | 90MM | 130MM |
| Quantity Piston | 11 | 10 | 7 |
| Extension Length | 22MM | 26MM | 30MM |
| Required Hole Depth | 1000MM | 1200MM | 1200MM |
| Intensity of Pressure | 1200kg/cm2 | 1200kg/cm2 | 1200kg/cm2 |
| Hole Diameter | 89MM | 100MM | 130MM |
| Weight | 29kg | 33kg | 50kg |
3. Required Hole Distance
| Soft Stone | 100-120MM |
| Medium Hard Stone | 70MM |
| Hard Stone | 50MM |
4. Cracking Volume
| Standard | soft stone | medium hard stone | hard stone |
| per time | 3.2 m3 | 1.57 m3 | 0.8 m3 |
| per day (8hours) | 307 m3 | 150 m3 | 77 m3 |

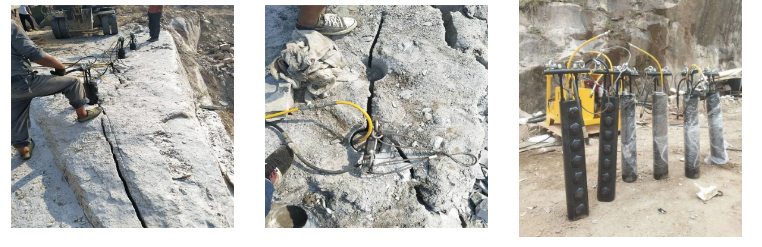

Applications
Advantages of our hydraulic splitter:
1. We are an actual factory that sells goods and gives free technical assistance.
2. A long-standing company that has provided services to clients in more than 50 nations.
3. Every machine is certified by SGS, ISO, and CE. One-year machine and spindle warranty.
4. If you have any questions, you can call our English-speaking phone support team, and we will respond with the best answer in a day or two.
5. Quick delivery that conserves time.
